Description

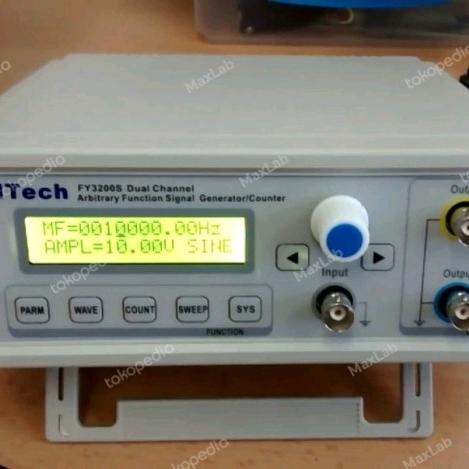

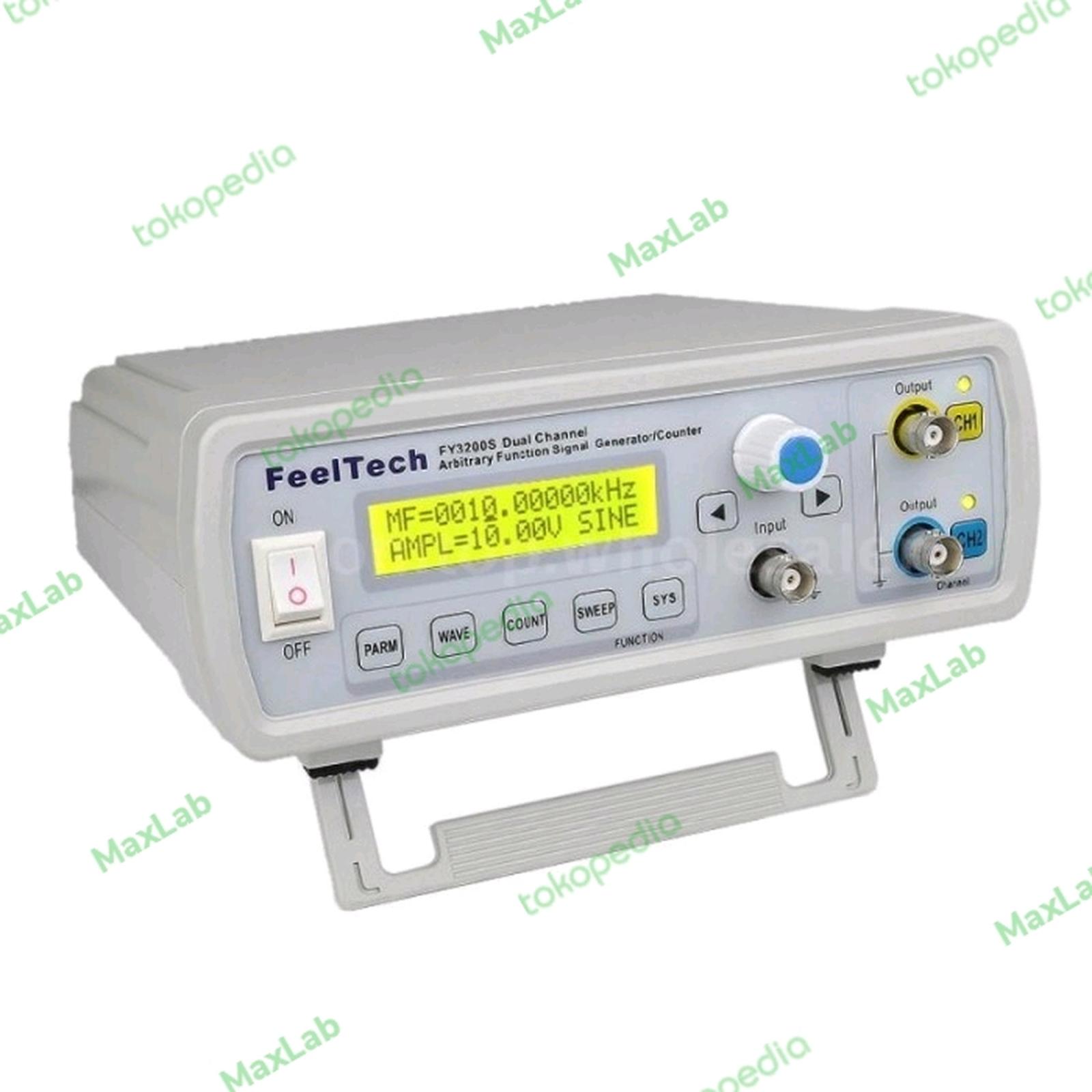

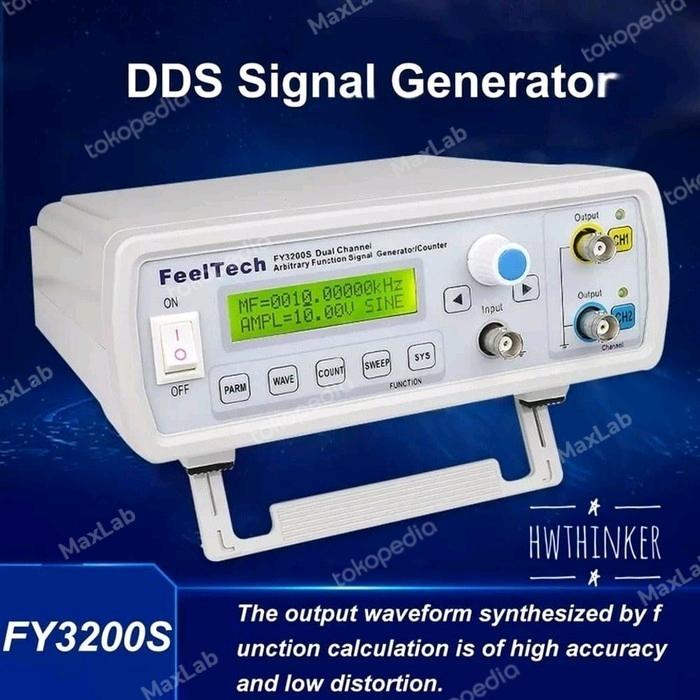

Dual-channel Digital signal generator DDS Function Generator frequency generator Arbitrary Waveform/Pulse 12Bits 250MSa/s 20MHz

DDS function signal generator from this series is a multi-functional signal generator with high precision and high performance. It adopts large scale of FPGA integrated circuits, high-speed MCU microprocessor and with high precision oscillator as base in the inner circuit, which make the signals more stable. SMT process can greatly improve the anti-interference and lifetime of the instrument. It has entirely independent dual-channel DDS signal and TTL level output, can generate signals of sine/triangle/square/sawtooth/pulse wave, white noise, etc. This instrument is of great advantage in generating signal, scanning waveform, measuring parameters, etc. It’s an ideal testing or measuring instrument for electronics engineer, electronic laboratory, and research

Features:
Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.

CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.

Supports user-defined waveform, each arbitrary waveform memory depth 2048*12bits, 250MSa/s sampling rate.

With pulse trains burst output function, manual trigger, internal CH2 trigger and external trigger three trigger modes that allow the unit to any output 1~1048575 arbitrary pulse trains.

Measurement functions: 100MHz frequency meter and counter function.

Signal output amplitude range is 10mVpp- 20Vpp, DC offset adjustment range is -10V to 10V, the resolution is 0.1V.

Digital signal output function, CMOS output range 0~10V.

Waveform generator up to 12 bits wide, the output waveform is more delicate, waveform distortion is low.

Package:
1 * Signal Generator
1 * USB Cable
1 * Power Plug
1 * CD
2 * BNC Clips Cable
